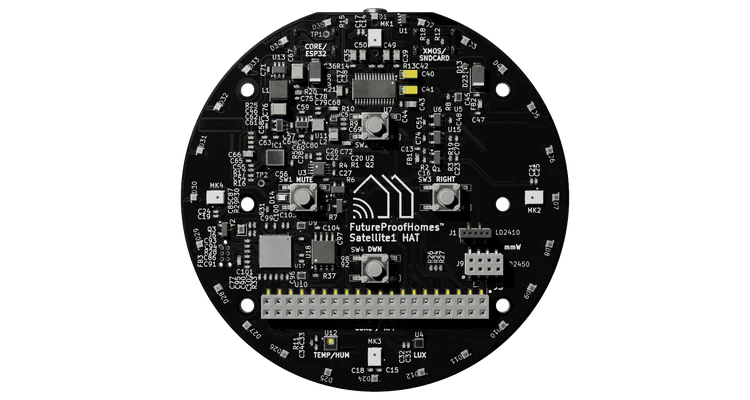

Satellite 1 HAT Board

Peripheral controller for the Satellite1 HAT Board by FutureProofHomes, running alongside the Linux Voice Assistant (LVA) container.

The controller runs as a separate Docker container on the same Raspberry Pi. It connects to LVA's peripheral WebSocket API, drives the 24-LED WS2812 ring with animations that mirror the Home Assistant Voice PE LED behaviour, and maps the four hardware buttons to LVA commands with multipress support on the context action button.

---

Hardware

Component	Details
Microphone array	XMOS XVF3800 (USB, far-field, onboard DSP)
LED ring	24 × WS2812 RGBW NeoPixels
Buttons	4 × tactile (top, bottom, left, right)
Audio output	I2S line-out (optional)
Interface	Raspberry Pi 40-pin HAT connector

Compatible hardware

The Satellite 1 HAT works on any Raspberry Pi with a 40-pin GPIO header. Tested targets:

• Raspberry Pi Zero 2 W
• Raspberry Pi 3 B / B+
• Raspberry Pi 4 B
• Raspberry Pi 5

---

GPIO pin mapping

Function	GPIO (BCM)	Notes
LED ring data	12	PWM0, channel 0
Right button (Volume Up)	17	Active low, internal pull-up
Left button (Volume Down)	27	Active low, internal pull-up
Top button (Mute / Unmute)	22	Active low, internal pull-up
Bottom button (Context action)	23	Active low, internal pull-up

---

Home Assistant Light Entity

The Satellite1 peripheral controller automatically registers an LED light entity with Home Assistant via LVA. This allows you to control the LED ring color and brightness directly from HA.

Light entity details

Property	Value
Entity ID	light.<satellite>_leds
Supported features	On/Off, RGB color, brightness, effect
Default effect	"Voice Assistant"
RGB default	Cyan (9.4% R, 73.3% G, 94.9% B)
Brightness default	66%
On/Off default	Off (idle stays dark until activated)

Controlling from Home Assistant

In Home Assistant, you can:

1. Turn the light on/off — toggles the idle LED glow. When off, only active pipeline animations show (listening, thinking, speaking, etc.). When on, the ring displays your chosen color during idle/standby.

2. Set color — pick any RGB color. All pipeline animations are tinted by your chosen color (matching Home Assistant Voice PE behavior):

   • Wake word → Flash in your color
   • Listening → Chase in your color
   • Thinking → Pulse in your color
   • Speaking → Reverse spin in your color
   • Muted → Solid ring in your color + red at mic positions
   • Volume muted → Solid ring in your color + red at AUX jack corner LEDs
   • Timer → Countdown arc in your color

3. Set brightness — scales all animations by the chosen brightness (0–100%). Useful for adapting to ambient lighting.

4. Use automations — e.g., dim the LEDs at night, change color based on assistant state, or flash for alerts.

Service calls example (YAML)

# Turn on and set to purple
service: light.turn_on
target:
  entity_id: light.satellite1_leds
data:
  rgb_color: [200, 0, 255]
  brightness: 200

# Dim for night mode
service: light.turn_on
target:
  entity_id: light.satellite1_leds
data:
  brightness: 80

# Turn off (hides idle glow, shows only pipeline animations)
service: light.turn_off
target:
  entity_id: light.satellite1_leds

---

Button behaviour

Right button — Volume Up

Sends volume_up to LVA. Each press increases volume by one step.

Left button — Volume Down

Sends volume_down to LVA. Each press decreases volume by one step.

Top button — Mute / Unmute

Toggles microphone mute. Sends mute_mic when unmuted, unmute_mic when muted. The LED ring switches to the muted indicator pattern immediately.

Bottom button — Context action (with multipress and color change support)

This button supports single-press context actions, multi-press gestures, and color changing via the HSV hue wheel (matching Home Assistant Voice PE):

Single press (< 100 ms hold time)

Context-aware command based on current assistant state, mirroring the Home Assistant Voice PE centre button priority:

Current state	Command sent
Timer ringing	stop_timer_ringing
Wake word / listening / thinking / TTS speaking	stop_pipeline
Music / media playing	stop_media_player
Any other (idle)	start_listening

Multi-press gestures

When the action button is released quickly (not held), it detects multiple presses:

Gesture	Timing	Command sent	Use case
Double press	2 presses < 250 ms apart	button_double_press	Trigger custom HA automations, mode toggles, etc.
Triple press	3 presses < 250 ms apart	button_triple_press	Access menu, configuration, advanced features
Long press	Single press held > 1000 ms	button_long_press	Scene activation, do-not-disturb, night mode, etc.

Examples:

• Double press → start a specific routine or mode
• Triple press → access a menu or configuration option
• Long press → toggle do-not-disturb or night mode

These commands are exposed as button press events to Home Assistant (via the registered button sensor), allowing you to create custom automations via button_press_event triggers.

Note: The color change mode (hold + volume) activates after ~100 ms of holding, allowing quick single presses to still trigger context actions.

Hold + Volume buttons — Color wheel rotation

Hold down the action button and use the volume buttons to rotate through the HSV color wheel (matching Voice PE's rotary dial):

Action	Effect
Hold + Volume Up	Rotate hue +10° (clockwise around color wheel)
Hold + Volume Down	Rotate hue -10° (counter-clockwise around color wheel)

The color wheel provides 36 distinct color stops (0°–360° in 10° increments):

• 0° – Red
• 60° – Yellow
• 120° – Green
• 180° – Cyan
• 240° – Blue
• 300° – Magenta

Each press changes the hue by 10°, allowing smooth navigation around the full color spectrum. The LED ring updates immediately to show the new color during idle/standby (when the light is on).

Example workflow:

1. Press and hold the action button
2. Press volume up repeatedly to cycle through warm colors (red → orange → yellow)
3. Release action button to confirm and exit color mode
4. The new color persists in Home Assistant

---

LED ring animations

All animations mirror the Home Assistant Voice PE ESPHome firmware exactly. The ring color is driven by the HA Light entity (see Home Assistant Light Entity above).

LVA state	Animation	Description
No HA connection / error	Red twinkle	Random red sparkle across all LEDs
Idle	User color (when light on)	Ring shows your HA light color at configured brightness, or off if light is disabled
Wake word detected	Slow clockwise spin	Two trailing arcs at opposing positions, tinted by your color
Listening	Fast clockwise spin	Same dual-arc pattern at 50 ms interval, tinted by your color
Thinking	Pulsing pair	Two opposing LEDs fade in and out, tinted by your color
TTS speaking	Anticlockwise spin	Dual-arc spin in reverse direction, tinted by your color
Muted	Solid ring + red indicators	Full ring tinted by your color; red at positions 0, 3, 6 & 9 (all 4 mic locations)
Error	Red pulse	All LEDs red, pulsing
Timer ticking	Countdown arc	Arc length proportional to seconds_left / total_seconds, tinted by your color
Timer ringing	Pulse + optional red	Full ring pulsing in your color; red at 3 & 9 if muted
Volume changed	Volume Display arc	Temporary arc (2.5s) showing the current volume level, starting from the AUX jack corner LED (D1, index 0) and sweeping clockwise across all 24 LEDs
Volume muted	Solid ring + red indicator	red at the AUX jack corner LEDs positions 11, 0, 1 to indicate the media player volume is zero

Note: All animations except twinkle, off, and error animations use the color from the HA Light entity. This means you can customize the entire LED experience from Home Assistant by adjusting the light's RGB color and brightness.

---

Installation

Step 1 — Host kernel configuration

This must be done on the host Raspberry Pi, not inside Docker.

Edit /boot/firmware/config.txt (or /boot/config.txt on older Raspberry Pi OS):

# Enable PWM on GPIO 12 for the WS2812 LED ring
dtoverlay=pwm,pin=12,func=4

# Disable onboard audio — it shares PWM0 with GPIO 12
# dtparam=audio=on    ← comment this out

# Optional: I2S line-out if using the HAT's audio output
# dtoverlay=hifiberry-dac

# Optional: increase GPU memory on Pi Zero 2 W
# gpu_mem=64

Reboot after saving:

sudo reboot

Why disable onboard audio? The Raspberry Pi's 3.5 mm headphone jack uses the same PWM0 hardware peripheral as GPIO 12. They cannot run simultaneously. The Satellite 1 HAT's XMOS microphone array connects over USB and is unaffected.

Pi 5 note: On the Raspberry Pi 5, GPIO is exposed as /dev/gpiochip4 instead of /dev/gpiochip0. Update the devices mapping in compose.yml:

devices:
  - /dev/gpiochip4:/dev/gpiochip4
  - /dev/mem:/dev/mem
  - /dev/vcio:/dev/vcio

Step 2 — Add user to GPIO group

sudo usermod -aG gpio,spi $USER

Log out and back in for the group change to take effect.

Step 3 — File structure

Place all files in the same directory:

Satellite1 HAT Board/
├── Dockerfile
├── compose.yml
├── requirements.txt
└── Satellite1_HAT_Board.py

Step 4 — Build and start

Option A — Run with Docker Compose (recommended)

docker compose up -d

Check logs:

docker compose logs -f

Option B — Run directly with Python

pip install -r requirements.txt
python Satellite1_HAT_Board.py --host localhost --port 6055

---

Configuration

All configuration is at the top of Satellite1_HAT_Board.py:

# LVA connection
DEFAULT_LVA_HOST = "localhost"
DEFAULT_LVA_PORT = 6055

# GPIO pins (BCM numbering)
LED_GPIO_PIN    = 12
BTN_VOLUME_UP   = 17
BTN_VOLUME_DOWN = 27
BTN_MUTE        = 22
BTN_ACTION      = 23

BTN_DEBOUNCE_MS = 150   # Button debounce in milliseconds

# Button multipress timing
MULTIPRESS_TIMEOUT_MS = 500    # Time window between presses (ms)
LONG_PRESS_MS         = 1000   # Duration to detect long press (ms)


# LED ring
LED_COUNT      = 24
LED_BRIGHTNESS = 168    # 0–255, default is 66 % (168)

# HA Light entity registration
LIGHT_OBJECT_ID = "leds"
LIGHT_NAME      = "LEDs"
EFFECT_VOICE_ASSISTANT = "Voice Assistant"

# Default ring colour — matches HA Voice PE default (cyan)
# These are used before the first light_command from HA arrives
DEFAULT_R, DEFAULT_G, DEFAULT_B = 24, 187, 242

Light entity configuration

The light entity is automatically registered with LVA on startup and will appear in Home Assistant as light.<satellite>_leds. You can customize it in HA's UI:

• Entity name — rename to your preference in HA
• Color — adjust in HA's light picker (RGB mode)
• Brightness — scale all animations
• Toggle on/off — show/hide idle glow
• Automations — react to time of day, other entities, etc.

For details, see Home Assistant Light Entity above.

Command-line arguments

The container command in compose.yml accepts:

Argument	Default	Description
--host	localhost	LVA container hostname or IP
--port	6055	LVA peripheral API port
--debug	off	Enable verbose debug logging

To connect to LVA running on a different host:

command:
  - "--host"
  - "192.168.1.50" # Use your actual device ip address
  - "--port"
  - "6055"

---

Connection to LVA

The controller connects to LVA's peripheral WebSocket API at ws://<host>:6055. The LVA container must have the peripheral API enabled (it is on by default) and port 6055 must be reachable.

On startup the controller:

1. Connects to LVA and registers a Light entity for the LED ring with Home Assistant
2. Receives a state snapshot (current mute state, volume, HA connection status, and light state)
3. Sets the LED ring to the appropriate animation immediately
4. Begins listening for events from LVA and button presses from the hardware

If the connection is lost (LVA restarted, network drop), the controller shows a red twinkle animation and automatically reconnects every 3 seconds.

---

Using multipress events in Home Assistant

The multipress commands (button_double_press, button_triple_press, button_long_press) are sent to LVA's peripheral API and exposed as button press events. You can trigger Home Assistant automations based on these events.

Example Home Assistant automation

Create an automation file or use the automation UI:

automation:
  - alias: "Double press context button for Movie Time"
    trigger:
      platform: event
      event_type: button_press_event
      event_data:
        press_type: double_press
    action:
      - service: scene.turn_on
        target:
          entity_id: scene.movie_time

  - alias: "Long press context button for Do Not Disturb"
    trigger:
      platform: event
      event_type: button_press_event
      event_data:
        press_type: long_press
    action:
      - service: input_boolean.turn_on
        target:
          entity_id: input_boolean.do_not_disturb

---

Drivers summary

Component	Driver needed	Where to install	How
LED ring (SK6812)	PWM kernel overlay	Host Pi	dtoverlay=pwm,pin=12,func=4 in config.txt, then reboot
Buttons	None	—	gpiozero + lgpio installed inside container via pip
Microphone (XMOS XVF3800)	None	—	Enumerates as USB audio device automatically
I2S line-out (optional)	HiFiBerry DAC overlay	Host Pi	dtoverlay=hifiberry-dac in config.txt, then reboot

---

Troubleshooting

LEDs do not light up

1. Confirm dtoverlay=pwm,pin=12,func=4 is in config.txt and the Pi has been rebooted.
2. Confirm onboard audio is disabled (dtparam=audio=on is commented out).
3. Check the container is running as root (user: "0:0" in compose file) — rpi-ws281x requires root for DMA access via /dev/mem.
4. Run with --debug and look for LED ring initialised in the logs. If rpi_ws281x not found appears, the Python package failed to install — rebuild the image.
5. If you see only pipeline animations (listening, thinking, etc.) but no idle glow: The light entity defaults to off in Home Assistant to match Voice PE behavior. Turn on the light.<satellite>_leds entity in HA to show the idle LED color.

Buttons do not respond

1. Confirm /dev/gpiochip0 (or /dev/gpiochip4 on Pi 5) is mapped in the compose devices section.
2. Run with --debug — each button press logs Button → <command>.

Light entity not appearing in Home Assistant

1. Confirm the Satellite1 container is connected to LVA: check docker compose logs for Connected to LVA peripheral API.
2. Confirm LVA is connected to Home Assistant: the LVA logs should show Home Assistant connected and the satellite integration should be visible in HA's integrations.
3. Restart Home Assistant or refresh the Devices page — the new light entity should appear under the satellite integration.
4. Entity ID will be light.<satellite>_leds where <satellite> is your satellite name in HA (e.g., light.kitchen_satellite_leds).

Container exits immediately

1. Run docker compose logs — a missing /dev/mem or /dev/vcio device produces a clear error at startup.
2. Ensure privileged: true is set in the compose file.

LVA not reachable

1. Confirm LVA is running and --disable-peripheral-api was not passed.
2. With network_mode: host, localhost resolves to the Pi itself. If LVA is in a separate Docker network (not host mode), use its container IP or service name instead.
3. Check that port 6055 is not blocked: nc -zv localhost 6055.
